PowerPlex® ESX 16 and ESI 16 Fast Systems

customize-this-small
View information on global supply logistics

Co-Amplification and 5-Color Detection of ENFSI-Recommended STR Loci

  • Amplification and detection in <50 minutes
  • Include D10S1248, D22S1045 and D2S441 as miniSTRs and D12S391 and D1S1656 as midiSTRs (do not include SE33)
  • Superior sensitivity and tolerance to common inhibitors to obtain full profiles from low-level DNA samples

Choose a system

Size

Catalog number selected: DC1610

$ 11,096.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
PowerPlex® ESX 16 and ESI 16 Fast Systems
ESX/400 reactions
$ 11,096.00
Your price: Log in
Change Configuration

Rapid Results from Degraded Samples

The PowerPlex® ESX 16 and ESI 16 Fast Systems meet the ENFSI recommendations for DNA profile sharing across Europe and allow co-amplification and detection of sixteen loci, including D18S51, D21S11, TH01, D3S1358, Amelogenin, D16S539, D2S1338, D1S1656, D10S1248, FGA, D8S1179, vWA, D22S1045, D19S433, D12S391 and D2S441. These kits can be used for both casework and database samples, simplifying workflows. Rapid cycling technology enables amplification to be done in less than 50 minutes. Additionally, these kits have superior tolerance to common inhibitors and superior sensitivity to obtain full profiles from low-level DNA and are robust enough to genotype degraded DNA samples through the use of miniSTR loci.

These two STR systems can be used to complement each other when analyzing degraded or challenging samples to maximize recovery of allelic information from as many loci as possible and allow confirmation of results obtained with the other system.

These systems are compatible with Spectrum and Spectrum Compact CE Systems and Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers.

ForensicGrade

Promega forensic products are manufactured in alignment with the ISO 18385 standard.This standard ensures minimal risk of human DNA contamination for products used to collect, store and analyze biological materials for forensic purposes. Learn more.

PowerPlex® ESX 16 Fast System

The PowerPlex® ESX 16 Fast System is designed with the loci recommended by the European Network of Forensic Science Institutes (ENFSI) and European DNA Profiling Group (EDNAP) as mini-STRs (<125bp; D2S441, D10S1248 and D22S1045) or midi-STRs (125–185bp; D1S1656 and D12S391).

14140MA-W

PowerPlex® ESI 16 Fast System

The PowerPlex® ESI 16 Fast System is designed with six of the original seven European Standard Set (ESS) loci (D3S1358, D18S51, TH01, vWA, D8S1179 and the more common FGA alleles) along with D16S539 and D19S433 as smaller amplicons (<250bp), while the new loci recommended by the European Network of Forensic Science Institutes (ENFSI) and European DNA Profiling Group (EDNAP) (D1S1656, D2S441, D10S1248, D12S391 and D22S1045) are present as larger amplicons.

14141MA-W

Rapid Processing Solutions for PowerPlex® Systems

The 5X AmpSolution™ Reagent, SwabSolution™ Kit and PunchSolution™ Kit allow fast and simple processing of swabs and punches for analysis with various PowerPlex® Systems, including the PowerPlex® Fusion, 21, 18D, 16 HS, ESX, ESI, CS7 and Y23 Systems. These products are intended for preparation of single-source reference, database and paternity samples where sample purification is unnecessary.

Which Product is Right for Me?

Take me to the Product Selector

Specifications

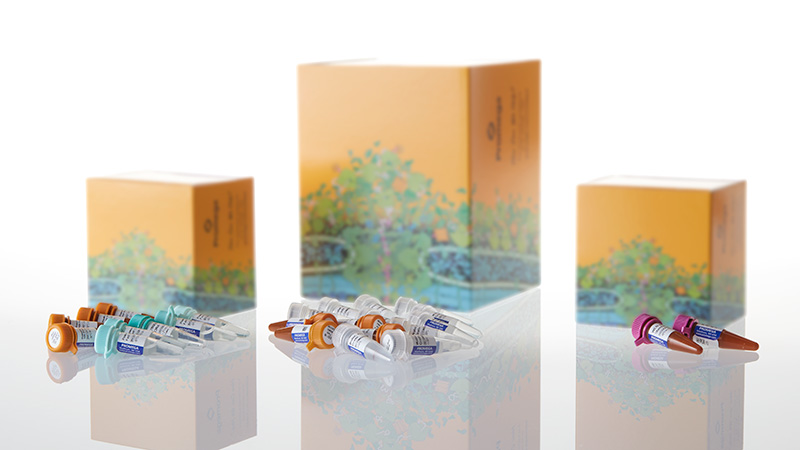

You are viewing: DC1610 Change Configuration

What's in the box?

Item Part # Size Concentration Available Separately

2800M Control DNA

DD710A 1 × 25μl 10ng/μl View Product

WEN Internal Lane Standard 500 ESS

DG510A 2 × 200μl View Product

PowerPlex® ESX 16 Fast Allelic Ladder Mix

DG388B 4 × 50μl

PowerPlex® ESX 16 Fast 10X Primer Pair Mix

DK261B 4 × 250μl

PowerPlex® ESI/ESX Fast 5X Master Mix

DP113A 4 × 500μl

Water, Amplification Grade

DW099A 10 × 1,250μl View Product

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

BB

Patents and Disclaimers

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

Specifications

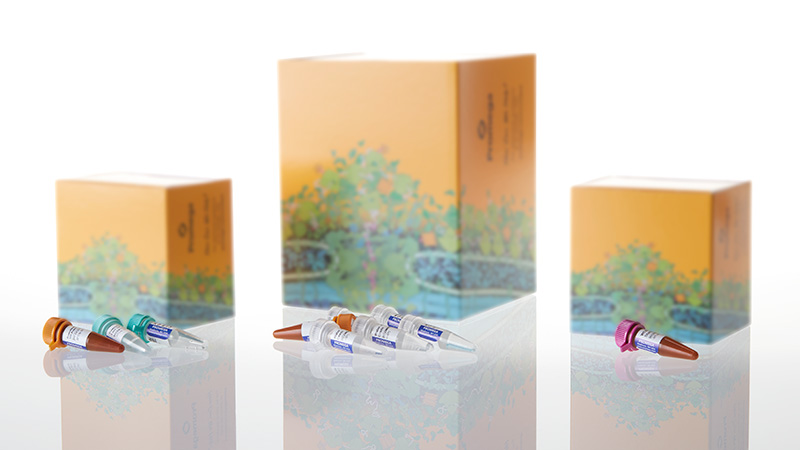

You are viewing: DC1611 Change Configuration

What's in the box?

Item Part # Size Concentration Available Separately

2800M Control DNA

DD710A 1 × 25μl 10ng/μl View Product

WEN Internal Lane Standard 500 ESS

DG510A 1 × 200μl View Product

PowerPlex® ESX 16 Fast Allelic Ladder Mix

DG388B 1 × 50μl

PowerPlex® ESX 16 Fast 10X Primer Pair Mix

DK261B 1 × 250μl

PowerPlex® ESI/ESX Fast 5X Master Mix

DP113A 1 × 500μl

Water, Amplification Grade

DW099A 5 × 1,250μl View Product

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

BB

Patents and Disclaimers

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

Specifications

You are viewing: DC1630 Change Configuration

What's in the box?

Item Part # Size

PowerPlex® ESX 16 Fast System

DC1610 1 × 400 reactions

PowerPlex® ESI 16 Fast System

DC1620 1 × 400 reactions

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

BB

Patents and Disclaimers

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

Specifications

You are viewing: DC1631 Change Configuration

What's in the box?

Item Part # Size

PowerPlex® ESX 16 Fast System

DC1611 1 × 100 reactions

PowerPlex® ESI 16 Fast System

DC1621 1 × 100 reactions

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

BB

Patents and Disclaimers

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

Specifications

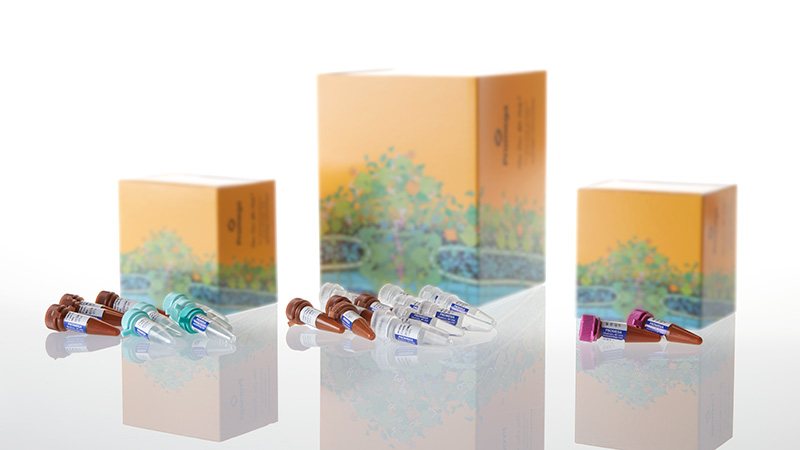

You are viewing: DC1620 Change Configuration

What's in the box?

Item Part # Size Concentration Available Separately

2800M Control DNA

DD710A 1 × 25μl 10ng/μl View Product

WEN Internal Lane Standard 500 ESS

DG510A 2 × 200μl View Product

PowerPlex® ESI 16 Fast Allelic Ladder Mix

DG387B 4 × 50μl

PowerPlex® ESI 16 Fast 10X Primer Pair Mix

DK255B 4 × 250μl

PowerPlex® ESI/ESX Fast 5X Master Mix

DP113A 4 × 500μl

Water, Amplification Grade

DW099A 10 × 1,250μl View Product

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

BB

Patents and Disclaimers

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

Specifications

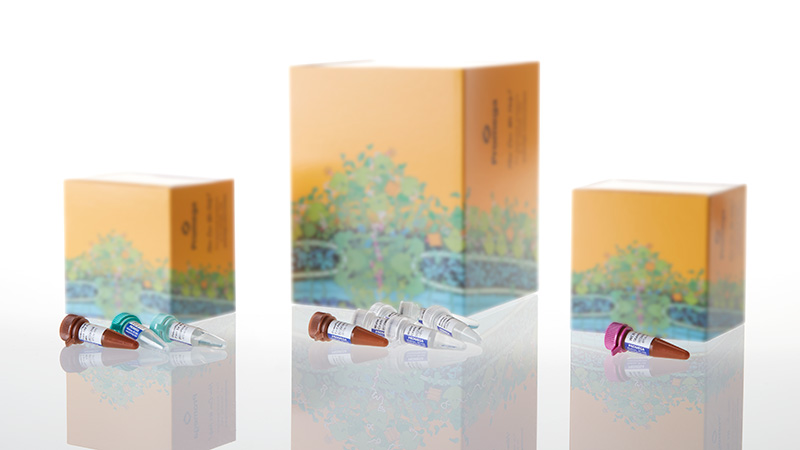

You are viewing: DC1621 Change Configuration

What's in the box?

Item Part # Size Concentration Available Separately

2800M Control DNA

DD710A 1 × 25μl 10ng/μl View Product

WEN Internal Lane Standard 500 ESS

DG510A 1 × 200μl View Product

PowerPlex® ESI 16 Fast Allelic Ladder Mix

DG387B 1 × 50μl

PowerPlex® ESI 16 Fast 10X Primer Pair Mix

DK255B 1 × 250μl

PowerPlex® ESI/ESX Fast 5X Master Mix

DP113A 1 × 500μl

Water, Amplification Grade

DW099A 5 × 1,250μl View Product

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

BB

Patents and Disclaimers

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.
