Bacterial plasmids serve as important research tools for a variety of applications including cloning, transfection, cell-free protein expression and DNA sequencing. To isolate the plasmid of interest in most plasmid purification systems, bacterial cells are usually lysed, often using a modified alkaline lysis method(1)
, and the plasmid is purified with a DNA-binding column. In recent times, plasmid purification kits have been improved by using the bind-wash-elute procedure to meet the increasing demands for a simple and rapid protocol, resulting in high yields of highly pure plasmid DNA.
PureYield™ plasmid purification systems offer a rapid method for plasmid purification without sacrificing yield or purity(2)
. In this article, we compare PureYield™ Plasmid Miniprep System (Cat.# A1222) to NucleoSpin® Plasmid QuickPure (Macherey-Nagel), QuickLyse™ Miniprep Kit (Qiagen) and QIAprep® Spin Miniprep Kit (Qiagen) for extracting large plasmids (>10kb). DNA purity was evaluated by absorbance (A260/A230 and A260/A280). We show that for speed, yield and purity, the PureYield™ Plasmid Miniprep System provides equivalent or superior performance compared to the other miniprep kits.
Comparison of Plasmid Miniprep Systems
The PureYield™ Plasmid Miniprep System provides high-speed purification of high-quality plasmid DNA in 10 minutes or less. Plasmid DNA can be isolated directly from up to 0.6ml of bacterial culture or from pelleted cells from up to 3ml of cell culture as indicated in the protocol. A dye present during the lysis and neutralization steps ensures complete mixing and improves plasmid yields and concentrations. The PureYield™ Plasmid Miniprep System incorporates an unique Endotoxin Removal Wash designed to remove substantial amounts of protein, RNA and endotoxin contaminants from purified plasmid DNA. This feature increases performance in sensitive applications such as transfection and cell-free protein expression reactions.
We compared the performance of the PureYield™ Plasmid Miniprep with the NucleoSpin® Plasmid QuickPure, QuickLyse™ Miniprep Kit and QIAprep® Miniprep when purifying three large plasmids: 10.8kb, 15kb and 18.7kb. DNA yield, purity and quality were evaluated by optical density measurements (A260/A230 and A260/A280). The A260/A280 ratio evaluates the amount of protein present in the purified DNA while the A260/A230 ratio assesses the copurification of chaotrophic salts and other contaminants. Table 1 compares the performance specifications of the plasmid purification kits, as supplied in the technical manual accompanying each kit. The protocols were similar among the kits for the ease of use, although the processing time did vary greatly.

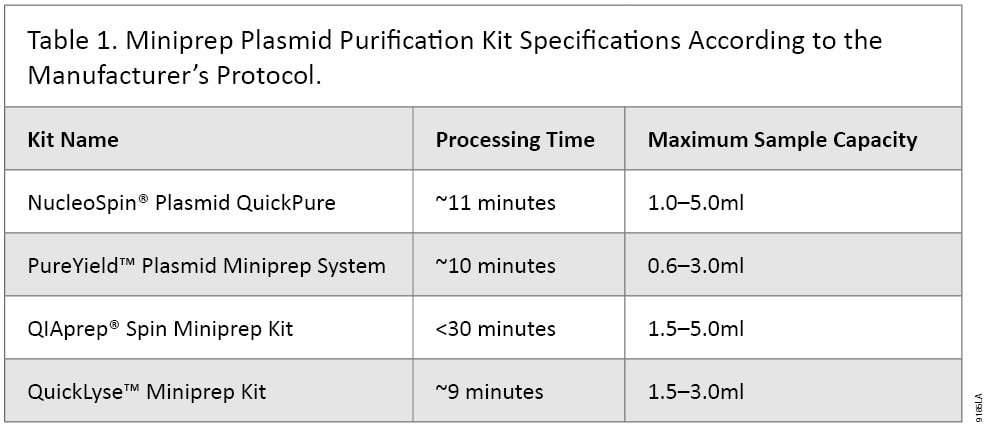

Table 1. Miniprep Plasmid Purification Kit Specifcations According to the Manufacturer's Protocol.

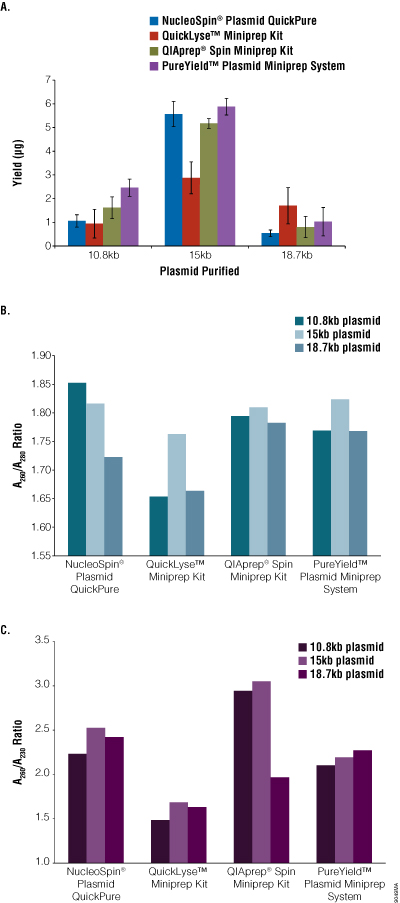

Of the four kits tested, the PureYield™ Plasmid Miniprep System resulted in the highest yields for 10.8kb and 15kb plasmids (Figure 1). Both the PureYield™ system and Qiaprep® Miniprep resulted in A260/A280 ratios >1.75 for all plasmids tested, while only the QuickLyse™ kit failed to give A260/A230 ratios >1.80. For the QuickLyse™ Miniprep Kit, the fast processing time (Table 1) came at the expense of yield and quality, as plasmid DNA from QuickLyse™ had the lowest yield for 10.8kb and 15kb plasmids and lowest purity for each.
The PureYield™ Plasmid Miniprep System offers rapid purification of plasmid DNA >10kb without sacrificing purity. For speed, yield, and purity, the PureYield™ Plasmid Miniprep System outperforms or is comparable to the competitor kits. The high-quality plasmid DNA is suitable for downstream assays, including demanding applications such as cloning, transfection, cell-free protein expression and DNA sequencing.
