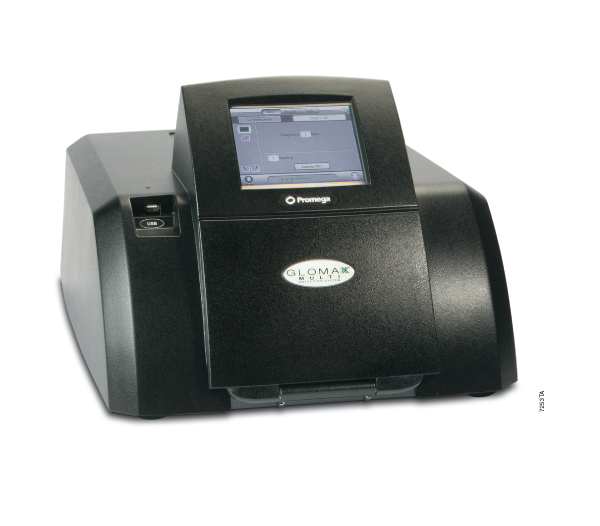

The GloMax®-Multi Microplate Multimode Reader is the next-generation integrated solution from Promega. While maintaining state-of-the-art luminescence performance, the GloMax® line now extends into fluorescence and absorbance applications. By combining assay reagents with a high-performance detection instrument, it's now easier than ever to start capturing real results.
The GloMax®-Multi Detection System consists of a base unit plus modular detection and functional units, allowing a flexible solution that can be expanded over time. Luminescence, fluorescence and absorbance reading modules are available as well as an optional injector system (used with the luminescence detection module only).
Luminescence Module: An advanced photon-counting photomultiplier tube (PMT) provides unmatched signal-to-noise ratios, beating most standalone luminometers. The luminescence module can detect as little as 3 × 10–21 moles of luciferase, covering a dynamic range over 8 logs. A dual masking system minimizes well-to-well cross-talk.
Fluorescence Module: Application-optimized Optical Kits simplify fluorescence operation while maximizing performance. Long-lived LED-based excitation lights minimize maintenance and variability in intensity. The UV, Blue, Green, Red and AFC Optical Kits are included with the Fluorescence Detection Module.
- UV (Ex: 360nm, Em: 410–460nm)
- Blue (Ex: 490nm, Em: 510–570nm)
- Green (Ex: 525nm, Em: 580–640nm)
- Red (Ex: 625nm, Em: 660–720nm)
- AFC (Aminofluorocoumarin; Ex: 405nm, Em: 495–505nm)
Absorbance Module: A 6-position filter wheel with 2 open positions ensures flexibility for a wide range of applications. An LED-based visible spectrum light source minimizes maintenance and variability. Filters for reading 450, 560, 600 and 750nm are included. A 490nm filter is available as an accessory.
Operation of the GloMax®-Multi Detection System can be performed entirely through the touch screen. Protocols for a variety of Promega and common laboratory assays are pre-installed, and there is also the flexibility to modify the protocols or create new methods. Data can be saved on the instrument and moved via the included USB flash drive. The system works as a standalone workstation in the laboratory, freeing computing resources from data capture, so more resources can be directed toward analysis.
Learn more about the GloMax®-Multi.
Compare with our other GloMax® Multimode Readers.
Features - Benefits
- Flexible Configuration: Modular system grows with your needs.
- Dedicated Luminometer Performance: Sensitive to approximately 3 × 10–21 moles of luciferase with over 8 logs of dynamic range.
- Multiplex Cell-Based Assays: Obtain more data from each experiment.
- Fluorescence and Absorbance Capability: Read standard lab assays without compromising luminescence performance.
- Engineered to Minimize Sample Cross-Talk: Expect reliable results in all read modes.
- Convenient, Standalone Operation: Eliminate bottlenecks and free analysis resources.
Applications
- Reporter assays.
- Cell viability assays.
- Apoptosis assays.
- Protease assays.
- Kinase assays.
- ADME assays.
Notes
Cat.# E7031 cannot be sold separately and must be purchased with at least one detection module (Cat.# E7041, E7051 or E7061).
Cat.# E4861 has replaced Cat.# E5401.
