Promega Corporation

PowerPlex® 16 HS System

The PowerPlex® 16 HS System is a multiplex STR system for use in DNA typing. This system co-amplifies the loci D18S51, D21S11, TH01, D3S1358, Penta E (labeled with fluorescein); FGA, TPOX, D8S1179, vWA and Amelogenin (labeled with TMR); CSF1PO, D16S539, D7S820, D13S317, D5S818 and Penta D (labeled with JOE). This multiplex includes all 13 CODIS STR markers, Amelogenin for gender determination and two low-stutter, highly discriminating pentanucleotide STR markers. All sixteen loci are amplified simultaneously in a single tube and analyzed in a single injection. The PowerPlex® 16 HS System is compatible with ABI...

Expand to Read More »

  • Share
  • Print
  • Email
  • Prices valid for customers of Promega GmbH only
Product Size Conc. Catalog # *List Price Order QTY Add to Cart

PowerPlex® 16 HS System

Close Window

PowerPlex® 16 HS System

 Components

  • 2800M Control DNA

    DD710A1 x 25μl
  • Internal Lane Standard 600

    DG107A1 x 150μl
  • PowerPlex® 16 HS Allelic Ladder Mix

    DG108B1 x 50μl
  • PowerPlex® 16 HS 10X Primer Pair Mix

    DK112B1 x 250μl
  • PowerPlex® HS 5X Master Mix

    DP101A1 x 500μl
  • Water, Amplification Grade

    DW099A5 x 1,250μl
100 reactions
- DC2101 zł 8 691,00 Add to cart

PowerPlex® 16 HS System

Close Window

PowerPlex® 16 HS System

 Components

  • 2800M Control DNA

    DD710A1 x 25μl
  • Internal Lane Standard 600

    DG107A4 x 150μl
  • PowerPlex® 16 HS Allelic Ladder Mix

    DG108B4 x 50μl
  • PowerPlex® 16 HS 10X Primer Pair Mix

    DK112B4 x 250μl
  • PowerPlex® HS 5X Master Mix

    DP101A4 x 500μl
  • Water, Amplification Grade

    DW099A10 x 1,250μl
400 reactions
- DC2100 zł 26 575,00 Add to cart


Available Separately

PRODUCT SIZE CONC CATALOG # *List Price ORDER QTY. Add to Cart

Internal Lane Standard 600

Close Window

Internal Lane Standard 600

 Components

  • Internal Lane Standard 600

    DG107A1 x 150μl
  • Blue Dextran Loading Solution

    DV435A1 x 1ml
  • Bromophenol Blue Loading Solution

    DV437A1 x 1ml
150μl
- DG1071 zł 971,00 Add to cart

Water, Amplification Grade

Close Window

Water, Amplification Grade

 Components

  • Water, Amplification Grade

    DW099A5 x 1,250μl
6,250μl
(5 × 1,250μl)
- DW0991 zł 108,00 Add to cart

2800M Control DNA

Close Window

2800M Control DNA

 Components

  • 2800M Control DNA

    DD710A1 x 25μl
25μl
10ng/μl DD7101 zł 383,00 Add to cart

2800M Control DNA

Close Window

2800M Control DNA

 Components

  • 2800M Control DNA

    DD725A1 x 500μl
500μl
0.25ng/μl DD7251 zł 281,00 Add to cart

9947A DNA

Close Window

9947A DNA

 Components

  • 9947A DNA

    DD100A1 x 250ng
250ng
10ng/μl DD1001 zł 407,00 Add to cart

You Also May Be Interested In

Storage Conditions

Store at –20°C.

For product intended use please see Patents & Disclaimers tab.

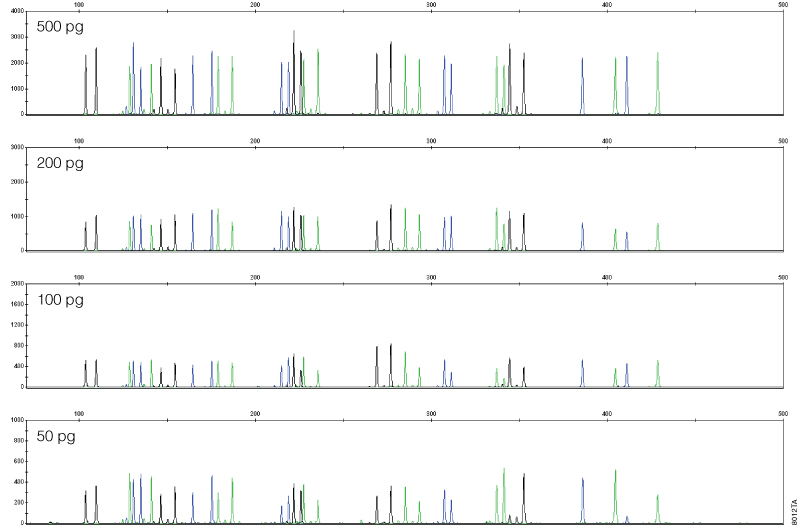

Sensitivity of the PowerPlex 16 HS System.Figure 1. Sensitivity of the PowerPlex® 16 HS System.

Decreasing amounts of template were amplified using the PowerPlex® 16 HS System. Each amplification was performed as directed in the PowerPlex® 16 HS System protocol. Once amplified, samples were separated on an Applied Biosystems 3130 Genetic Analyzer using 3kV, 5-second injection. In each case all expected alleles were called using a 50RFU threshold.

Decreasing amounts of template were amplified using the PowerPlex® 16 HS System. Each amplification was performed as directed in the PowerPlex® 16 HS System protocol. Once amplified, samples were separated on an Applied Biosystems 3130 Genetic Analyzer using 3kV, 5-second injection. In each case all expected alleles were called using a 50RFU threshold.

/~/media/images/resources/figures/8000-8099/8012ta_800px.jpg?la=pl-PL

Use Restrictions

DC2101, DC2100, DW0991, DD7101, DD7251, DD1001 Not For Medical Diagnostic Use.
DG1071 For Laboratory Use. Outside of the United States, this product is intended for research use only unless otherwise stated.

Patents - Disclaimers

DC2101, DC2100 U.S. Pat. No. 6,238,863 and other patents and patents pending.

DC2101, DC2100 U.S. Pat. Nos. 5,843,660, 6,479,235, 6,221,598 and 7,008,771, Australian Pat. No. 724531, Canadian Pat. Nos. 2,118,048 and 2,251,793 and other patents and patents pending.

DC2101, DC2100 Allele sequences for one or more of the loci vWA, FGA, D8S1179, D21S11 and D18S51 in allelic ladder mixtures is licensed under U.S. Pat. Nos. 7,087,380 and 7,645,580, Australia Pat. No. 2003200444 and corresponding patent claims outside the US.

DC2101, DC2100 STR loci are the subject of U.S. Pat. No. RE 37,984, German Pat. No. DE 38 34 636 C2 and other patents issued to the Max-Planck-Gesellschaft zur Förderung der Wissenschaften, e.V., Germany.
